Home > Products > PVC Water Stop > conical twin screw barrel for PVC foam board/sheet

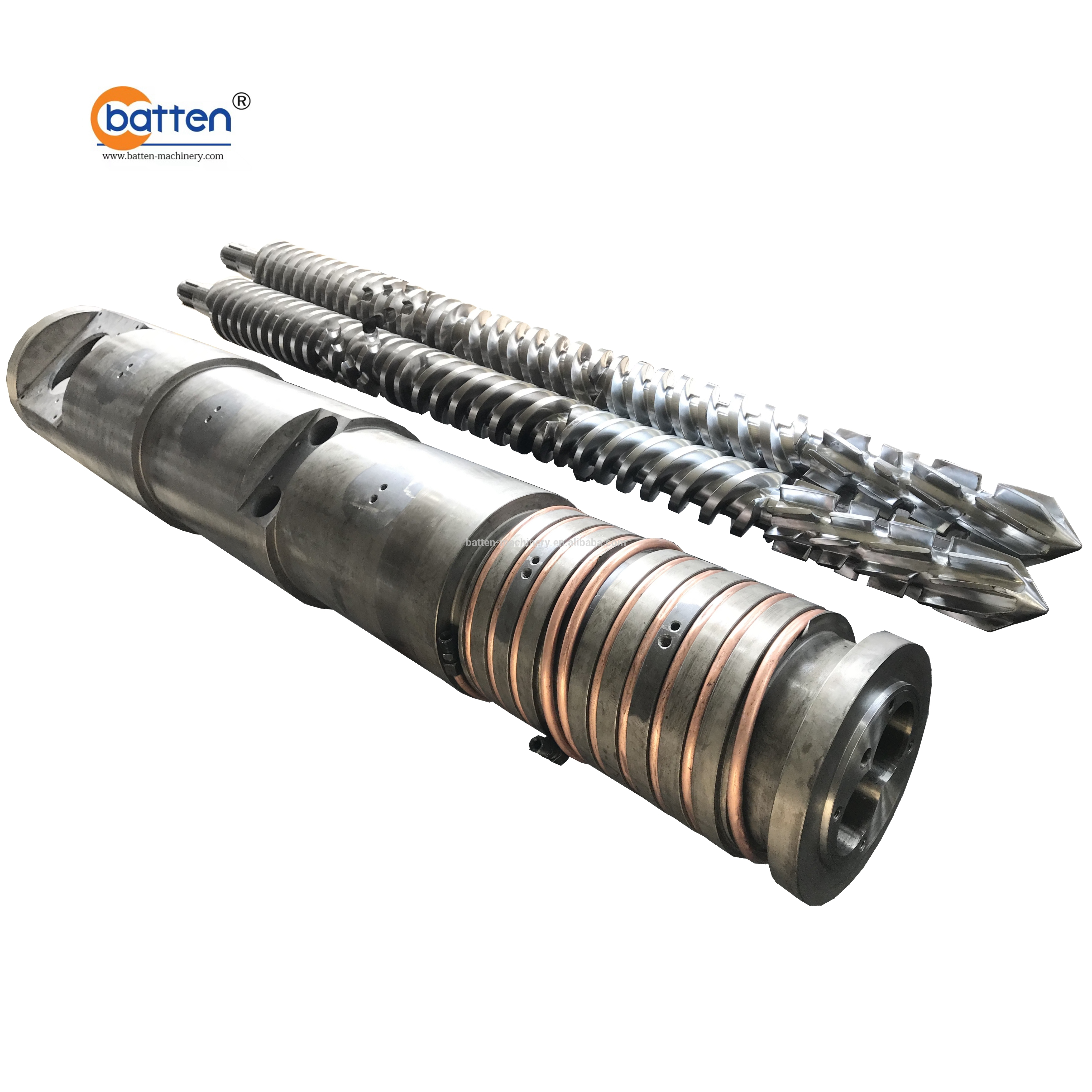

conical twin screw barrel for PVC foam board/sheet

  • conical twin screw barrel for PVC foam board/sheet
  • conical twin screw barrel for PVC foam board/sheet
  • conical twin screw barrel for PVC foam board/sheet
  • conical twin screw barrel for PVC foam board/sheet

conical twin screw barrel for PVC foam board/sheet

    Unit Price: 1000 USD
    Min. Order: 1 Set/Sets
    Packaging: PE film and plywood case
    Supply Ability: 300 Set/Sets per Year
    Port: Ningbo/Shanghai

Basic Info

Model No.: SJZ80/156

Product Description


Technical Specification
Type
SJZ80/156 conical twin screw barrel
MOQ
1 set (1 pair of screws and 1 pc of barrel)
Design Details
Screw
I TYPE:inside is water/oil cooling system
II TYPE:outside is oil cooling system
Barrel
I TYPE:outside is air cooling system
II TYPE:outside is copper pipe around cooling system

Accessories
Stop ring+washers to adjust the space between screw and barrel
Technical Specification
Material:High quality 38CrMoAlA
Process:Advanced nitriding & bimetallic process
Hardness After Hardening & Tempering:HB280-320
Nitrided Hardness:HV900-1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:0.015mm
Alloy Hardness:HRC 50-65
Alloy Depth:0.8-2.0mm

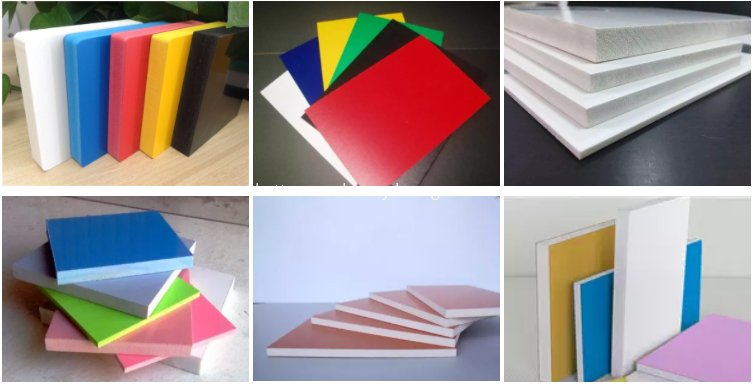

Product Use

Zhoushan Batten Machinery Technology Co., Ltd.

 Zhoushan Batten Machinery Technology Co.,Ltd is located in Zhoushan City, the largest manufacture base of Screw Barrel in China.

Batten is a professional manufacture and supplier of screw barrel for plastic machine! We offer a range of screw barrel for Extruder and Injection Machines, both China and Europe Brand. We can supply with screw barrel for Krauss Maffei, Battenfeld, AMUT, Weber machine etc. Since 2012,our export value is nearly $1 million and we has invested new factory in 2013 and our target is $2 million by the end of 2014.

We put quality first and our team devote ourselves to service for you. We have nearly 40 skilled workers and 3 technical engineers and 3 managers. Thanks to them, we can bring high quality and rapid reply to our customers abroad.

Batten advocates "Enjoy Life, Enjoy Work"! Batten people are very pleased to service for you!
